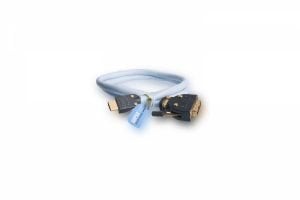

SUPRA HDMI-DVI/H MET-S/B FRHF 12M
Kaina už 1 vnt.
Supra HDMI-DVI – Flame retardant and halogen-free
The Supra HDMI-DVI cables connect computers, media players and screens for video and graphic images. SUPRA HDMI-DVI maintains the signal integrity up to >30metres cable length and allows transmissions in both directions i.e. the cable is bi-directional. It is available in two versions; HDMI-DVI and HDMI-DVI MET-S/B (Metal connectors with removable housings). HDMI-DVI is supplied with a moulded HDMI contact at one end (cannot be removed without cutting cable) and a removable DVI housing (the housing can be removed, but the contact block cannot without re-soldering). Provides for maximum resolution of 1920 x 1200P @ 24 fps (Hz).
SUPRA launched its first HDMI/DVI cable in 2004. Nine years of continuous product development has resulted in the Supra HD5 HDMI/DVI, which according to us is the best HDMI/DVI cable on the market. We guarantee that the cable can handle 1080P @ 24 fps up to 32m. Passively! The Supra HD5 cable itself is tested and approved in compliance with the latest test provisions by HDMI´s Accredited Testing Center in the USA. A secure quality guarantee of our HDMI/DVI cables. The bandwidth in the HD5 (used in all of our HDMI/DVI cables) is 1100 MHz, over three times (> 3 x !) the specified of HDMI High Speed (340 MHz). Talk about headroom! There are some interesting exotic cables out there claiming to do the job but only a few have the courage to let an independent institute validate claimed performance. Supra Cables is one of them.
SUPRA HDMI & DVI Features & benefits
Transmits today’s challenging formats common for HDMI and DVI flawlessly
FRHF – Flame reatrdant and halogen-free making it perfect for public premises
Sturdy design – Withstand the normal installation abuse and provides long service life
23AWG leads – For minimum losses
Triple screen technology – Provides for long distance clearance hence freedom of installation with maintained signal integrity
Made in Sweden – Unsurpassed quality and reliability thanks to a three step quality plan
High resolution picture and sound
We often meet scepticism when we talk about HDMI cables. ”Does it really matter?” ”I mean, it’s only a data stream?” Yes, it is a stream of digital bits. And, yes, it does matter. When a cable is so poor that the picture blanks out, does not sync, you immediately notice something is wrong. Unfortunately there is an intermediate state before the signal is so corrupt it cannot be read and blanks out. Many claim that if the screen shows, the signal is good enough. There is circuitry in the receiver which tries to repair broken data stream by buffering and error correction, but this is based on best possible estimates and is not necessarily what was sent. Further, if there is time, the data protocoll allows for calling for re-submission of missing bitstreams. If there is time … You might experience sync problems (delays), distorted colorations, insufficient blackness, noise and unexplainable audible pops during which the hardware is working overtime trying to repair the fragile bitstream. Do your precious hardware the best possible favour you can by connecting it using SUPRA HDMI cables and both you and your equipment will fully enjoy the show.
SUPRA HDMI MET-S/B Connectors, (Straight/Bent)
Angled HDMI for less strain by heavy cables and easier fitting for wall tv/dvd/reciever etc. Also available in straight shape. The housing is detachable from the soldered cable. The connector body is pre-moulded to protect the termination and make installation possible in conduits. (>20mm pipe and >25mm tube). The housing is in metal for optimal shielding. Should you prefer to put a straight housing on after installation, it is available, too. Both bent and straight plugs are included in the package, use the one that fits your setup best.
How you get a bent and too big connector through a small conduit pipe (minimal Ø 20mm for conduit pipe and 25mm for conduit tube).
1. Can you pull this connector through a conduit pipe
2a. All parts are easily detachable.
2b. These are the parts of the dis-assembled connector.
2c. The soldered part is overmoulded for protection.
3. Nylon braid is used as an aid to pull the cable through the conduit. Fasten the braid to the pulling tool with a knot.
4. Picture showing how much space there is left in a 20mm pipe.
5. As you can see, despite the sharply bent pipe, the cable got through, effortlessly.
6. Assembled cable and connector ready for use.
SUPRA HD5 HDMI/DVI high speed
Signal bandwidth: 1100 MHz
TMDS bandwidth: 18 Gbit/s
Color depth: 48 bit/px (16 bit per color)
Guarantee resolution: 1080p, up to 1920×1200 (ratio 16/9 and 16/10)
Deep Color compatible, x.v.Color
Flame retardant and halogen free
Perfect for installation in public premises
Excellent flame-retardancy; E30
Low smoke generation
Low toxic gas emission
Standards: HDMI 2.0 High speed ♦ DVI-D 18+1
Connection configuration: Single-Link

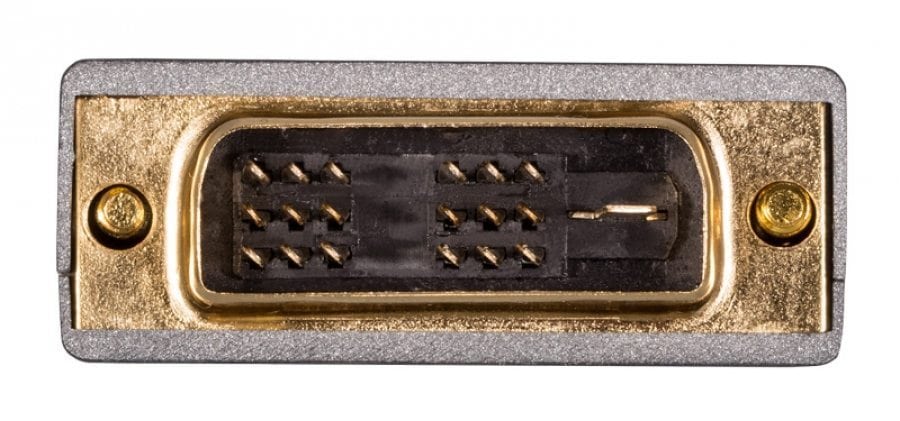

Connectors: 1 x HDMI Met-S and 1 x DVI piece
Signal direction: Bi-directional
Applications e.g.: Fwd from A/V receiver with HDMI to DVI in projektor or large flat screen
Maximal resolution: 1080p @ 24, up to 1920 x 1200 @ 24 (16/10 aspect ratio) pixels @ fps (Hz)
Solder tin: Almit SR-34 Super
Cable strain relief: 1 x Supra HDMI Met-S/B and 1 x Supra DVI-D 18+1 with integrated cable clamping pieces
Lead area: 5 x TMDS 0.26 / 23 mm2 / AWG
Lead material: Solid strand, 5N oxygen-free coppar
Di-electric (insulation): Low density, air-injected PE foam
Inner shield / coverage: Aluminized PET foil / 100 %
Communication leads: 5 x 0.129 / 26 mm2 / AWG
Di-electric (comm. leads): PE
Outer shield / coverage: Aluminized PET foil and 5N OFC braid / 100 %
Jacket: Flame retardent and halogen-free PE
Flame retardancy: Yes
Cable outer dimension: Ø 7.0 mm
Weight without connectors: 0.106 kg / m
Resistance: 82 Ohm / km
Capacitance: 42 pF / m
Characteristic impedance: 100 Ohm
Velocity factor: 0.8 x C (speed of light)
