SUPRA HDMI INSTALL KIT MET-B/BRAID
Kaina už 1 vnt.
SUPRA HDMI Install Kit MET-B/Nylon Braid
Angled HDMI for less strain by heavy cables and easier fitting for wall tv/dvd/reciever etc. Also available in straight shape. The housing is detachable from the soldered cable. The connector body is pre-moulded to protect the termination and make installation possible in conduits. (>20mm). The housing is in Aluminium for optimal shielding.
Use the Met-S or Met-B housings that fits your setup best.
SUPRA MET-S/B, (Straight/Bent)
High Speed HDMI with Ethernet Cable (v2.0)
Angled HDMI for less strain by heavy cables and easier fitting for wall tv/dvd/reciever etc. Also available in straight shape. The housing is detachable from the soldered cable. The connector body is pre-moulded to protect the termination and make installation possible in conduits. (>20mm pipe and >25mm tube). The housing is in metal for optimal shielding. Should you prefer to put a straight housing on after installation, it is available, too.
The Trick
How you get a bent and too big connector through a small conduit pipe (min. diam. 20mm for conduit pipe and min. 25mm for conduit tube).
1. Can you pull this connector through a conduit pipe?
2a. All parts are easily detachable.

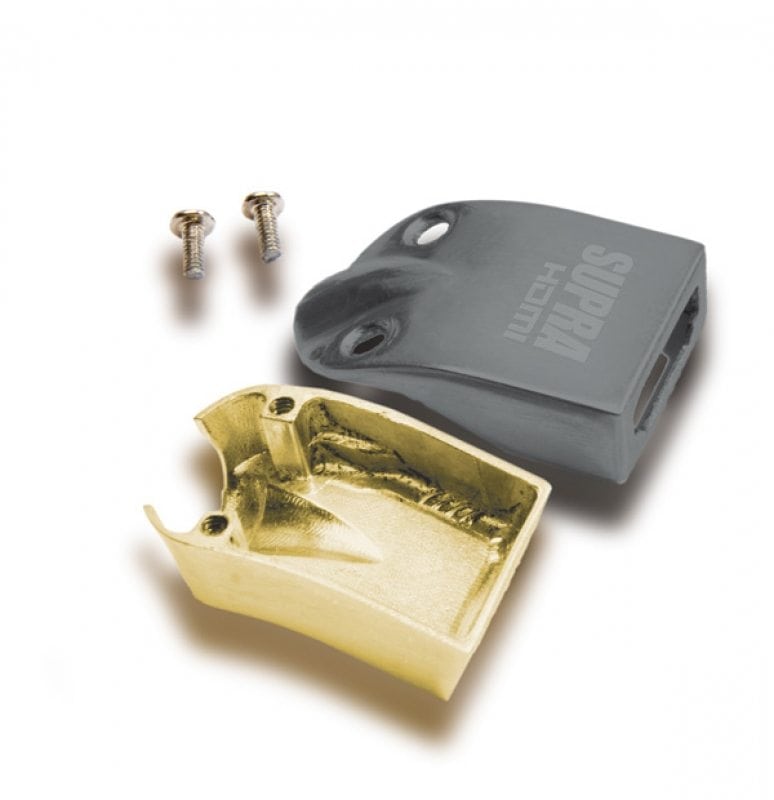

2b. These are the parts of the dis-assembled connector.
2c. The soldered part is overmoulded for protection.
3. Nylon braid is used as an aid to pull the cable through the conduit.
Fasten the braid to the pulling tool with a knot.
4. Picture showing how much space there is left in a 20mm pipe.
5. As you can see, despite the sharply bent pipe, the cable got through, effortlessly.
6. Assembled cable and connector ready for use.
Qty/pack: 1 pcsConnectorHDMI HousingInterface: DigitalConnector housing: Aluminium, ShieldedConnector Fixing: -Cable Clamping: ClampMax Cable Dia.10 mmColour:Anthracite Grey
