SUPRA LORAD 2.5 CS-EU/ANGLED 2M
Kaina už 1 vnt.

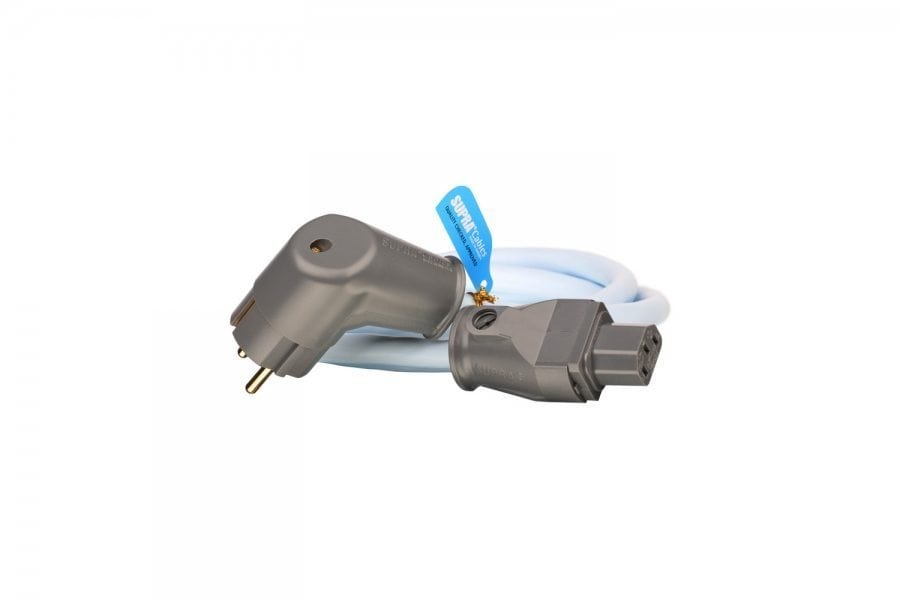

LoRad 2.5 CS-EU/A (10A)
Shielded cord set comprising Supra LoRad 3 x 2.5 mm2 cable, Supra SWF10 female connector (IEC-320) and Supra SW-EU/A 90o angled male plug. Current rating 10 ampere continuously. The EU-version’s Schuko plug is the most common standard throughout Europe. Exceptions are Denmark, Italy, Switzerland, Ireland and Britain. Fits our LoRad mains power distribution blocks rated 10 ampere.
Supra LoRad Cord Sets – Safe No-Noise Mains Power Flex with Supra Lavish 24K Gold Plated Connectors
LoRad means Low Radiation and the design of these mains flex cables minimises both electric and magnetic alternating fields. Allow your hi-fi gear the most welcome benefit of all, the possibility to be silent when supposed to. Only then, the tiniest details and notes will become clearly audible and the background of time delayed reflections, real or artificial, that represent the acoustic invironment in the recording will display the entire sound stage to the conscious hi-fi enthusiast. Or, when translated to the world of home cinema, only the movie shows, not the artefacts, nor the noise deriving from the huge variety of electrical device interferences present in most modern households.
LoRad protects both from alternating fields radiating from the cable as well as from pick-up of surrounding airborne noise fields, e.g. wireless and mobile phones, wifi, radio and TV broadcasts, etc. LoRad MkII is a development of the LoRad concept, now with improved shielding, flexibility, bend-/fatigue-resistance and strength.
In addition to the physical shield incorporated in the cable design, the leads are spun in a short pitch, counteracting the magnetic alternating field that according to the physical law of inductance always surrounds a lead that carries a current. Also the pick-up of inbound unwanted fields will be lowered by this measure.
The benefits are less noise picked up by the cable, less noise caused by the cable inside and less noise that infect adjacent cables such as low level interconnects. You will notice cleaner sound, pronounced transients, richer fine details, a silent background and an improved 3D soundstage. If your equipment is installed using Supra cables, is connected with the mains power cables in phase, the noise floor is normally suppressed by several dB, allowing a lot more of the content to be revealed. This off course is even more articulated for enthusiasts playing high resolution media, where the large amount of extra quality in details often at the price of four times the data amount, in the end hardly matters if all of this extra get lost on its way to the ears or eyes. Low radiating cables is also increasingly important from a health point of view. Science has proven that alternating magnetic fields affects cell growth.
LoRad MkII now incorporates Supra’s unique Carbon/Nylon shield concept. Semiconducting Carbon/Nylon shield displays improved properties, bending strength, environmental immunity, higher tensile strength and less microphonic effect. The Carbon/Nylon shield is connected to a drain-wire along its total length, efficiently leading noise stuck in the shield to ground. We have tested and evaluated all known types of screens for making such a good cable as possible. Supra’s semi-conductive Carbon/Nylon shield was the only that passed the rigorous safety requirements and, moreover, its shielding properties was the best ever. LoRad MkII is tested and certified by Intertek Sweden, meeting the European safety regulation HD21.5 S3.
The cable must be connected to a wall socket with a ground terminal for the full LoRad effect to take place.
Every now and then we hear about creative alternative ways to arrange an earth connection if the wall socket does not provide one. There is especially one we would like to highlight as particularly hazardous and we hope this statement does not serve as yet another creative way. Occasionally the water heat radiators have been connected to the hi-fi gear cabinets or to a mains distribution block earth contact plate. This works normally from the electrical point of view. Until the following happens; one of the devices become faulty and the cabinet becomes energized with wall socket mains voltage. The water radiator system may not be properly grounded to earth potential. Now, this means that there might not be a large enough fault current through the water pipes to blow the fuse, thus disconnecting the fualty device. Further it means that most of the pipings and radiators are energized with wall socket mains voltage. If this is in an apartment house, every neighbour tenant has potentially lethal voltage in their radiators. It will not show. Until e.g. small children touches the radiator. We strongly discourages from the above or any other way to arrange a ground connection other than according to the local laws and regulations for electrical safety.
Features and benefits
LoRad stands for low radiation of electric and magnetic alternating fields, keeping you and your family free from harmful influence
The screen protects your equipment from radiated mains, RF pick-up and allows you to enjoy your hi-fi set or TV’s full potential
Short pitch twisting of the lead cores cancels the magnetic alternating fields and will not infect adjacent interconnects with noise feedback
LoRad will result in a cleaner sound, better picture and a more healthy home and working invironment with low levels of harmful fields
Unbeatable price-performance ratio
Made in Sweden!
Swedish National Laboratory of Forensic Science, SKL
Swedish Air Force (JAS Project)
A majority of European air traffic control towers
Hi-fi, stage and studios
EHS (electro hypersensitivity)
Noise critical installations
Cord set technical data
Grounded and shielded mains power cord set for devices offering detachable cord
European except Britain, Ireland, Denmark, Switzerland and Italy
SW-EU/A ► SWF-10, 24K gold plated with 90o angled Schuko jack
Maximal continuous current
