MB02-JP/H 2PRS LINE FRHF GREY

Matuojamas kolonėlių kabelis.

9.00

Neturime

Share this product

Aprašymas

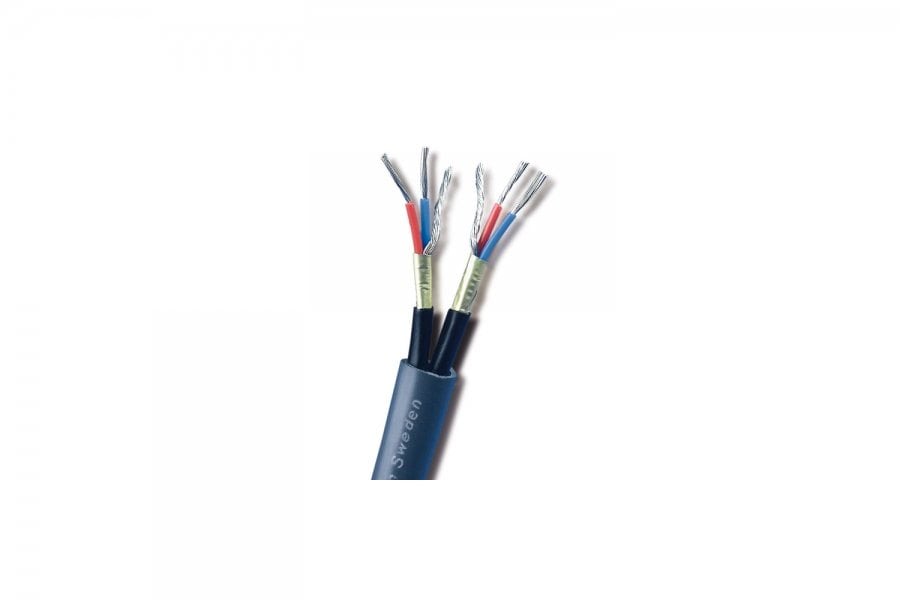

SUPRA MB02-JP/H 2PRS LINE FRHF GREY

Kaina už 1 metrą.

Supra MB-serien – A durable, strong, flame resistant professional installation cable

The conductors of multi-strand tinplated 5N purity copper, together with the PE di-electric (insulation) provides for a low capacitance professional installation cable with very good electrical properties. The Supra professional series of cables have been recognized as trustworthy partners on-stage and in studios for a long period of time.

Halogen Free & Fire Retardant

Supra professional series (except the MB-08) are fire retandant and halogen-free allowing them to be used professionally in public spaces. As soon as there are large events where the public is present there are tough regulations on all parts when it comes to durability, fire resistance and emissions of toxic fumes in case of a fire.

MB-02/H – Four joint pair balanced installation cable

A joint two channel (e.g. stereo) analogue installation cable aimed for longer analogue transmissions in e.g. studios. Very good electrical and mechanical properties for a long service life. Individually shielded channels, with separate drain wires. Available on a 200 meter bobbin, or custom built in specified lengths with any of our suitable connectors. It can be used both as single-end as well as balanced, we recommend balanced operation at longer lengths (> 5 meters).

Mechanical design

Standard

Microphone and/or line pro-applications

Leads

Two joint pair signal + two drain

pieces

Number of strands / lead

19

pieces

Strand dimension

Ø 0.127

mm

Lead area

0.24 / 23

mm2 / AWG

Lead material

Tin plated 5N copper

Inner dielectric (insulation)

Low capacitance PE

Shield

Individual efficient aluminized PET foil

Additional tensile reinforcement

Polyester/Silk yarn

Jacket

Flame Retardant, Halogen-free PE

Color

Anthrasite grey

Outer dimension

Ø 7.0

mm

Weight

42

g / mm

Length / bobbin

200

meters

Electrical properties

Resistance

72

ohm / km

Capacitance

52

pF / m
