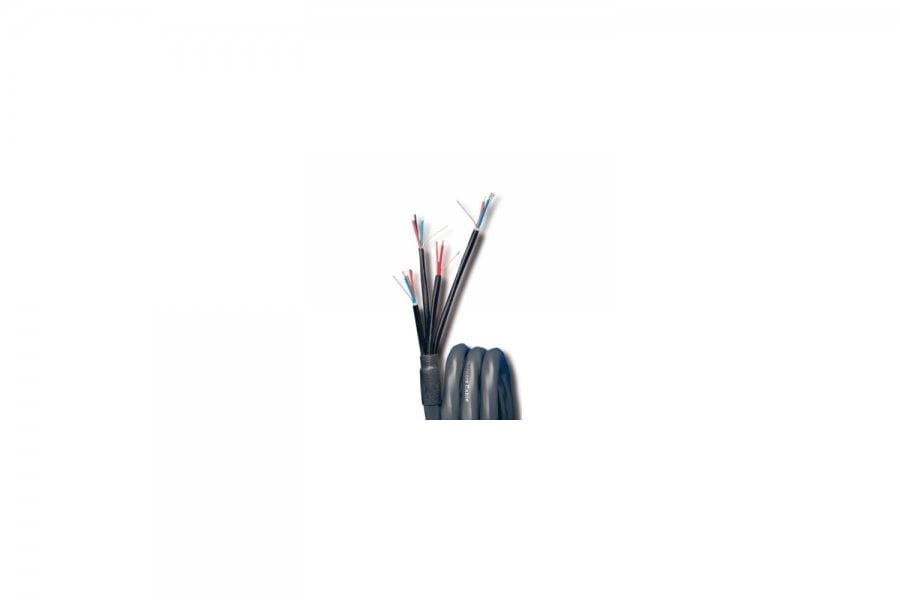

SUPRA MB04-JP/H 4PRS LINE FRHF GREY
Kaina už 1 metrą.
Supra MB-serien – A durable, strong, flame resistant professional installation cable
The conductors of multi-strand tinplated 5N purity copper, together with the PE di-electric (insulation) provides for a low capacitance professional installation cable with very good electrical properties. The Supra professional series of cables have been recognized as trustworthy partners on-stage and in studios for a long period of time.
Halogen Free & Fire Retardant
Supra professional series are fire retandant and halogen-free allowing them to be used professionally in public spaces. As soon as there are large events where the public is present there are tough regulations on all parts when it comes to durability, fire resistance and emissions of toxic fumes in case of a fire.
MB-04/H – Four joint pairs balanced installation cable
A joint four channel analogue installation cable aimed for longer analogue transmissions in e.g. studios. Very good electrical and mechanical properties for a long service life. Individually shielded channels, with separate drain wires. Available on a 100 meter bobbin, or custom built in specified lengths with any of our suitable connectors. It can be used both as single-end as well as balanced, we recommend balanced operation at longer lengths (> 5 meters).
Mechanical design
Standard
Microphone and/or line pro-applications
Leads
Four joint pair signal + four drain
pieces
Number of strands / lead
19
pieces
Strand dimension
Ø 0.127
mm
Lead area
0.24 / 23
mm2 / AWG
Lead material
Tin plated 5N copper
Inner dielectric (insulation)
Low capacitance PE
Shield
Efficient aluminized PET foil
Additional tensile reinforcement
Polyester/silk yarn
Jacket
Flame Retardant, Halogen-free PE
Color
Anthrasite grey
Outer dimension
Ø 8.0
mm
Weight
72
g / mm
Length / bobbin
100
meters
Electrical properties
Resistance
72
ohm / km
Capacitance
52
pF / m
