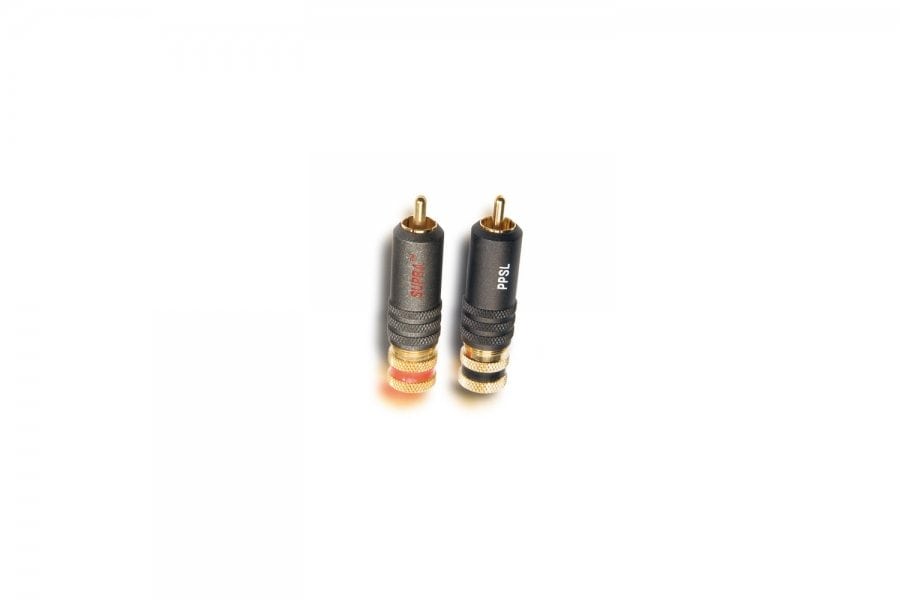

Supra PPSL RCA PLUG

Kaina už 2 vnt.

Supra PPSL RCA contact – One pair, red and white

24K Gold plated RCA (Radio Corporation of America) contact with exceptional electrical and mechanical properties. Fully shielded, RFI proof, robust design providing for cables up to Ø7.7 mm. Mechanical cable strain relief as well as fixation to female chassis contact by means of chuck locking, an extraordinary efficient fixation and gentle to both cables and connectors. Features a one piece machined body, a soldering loop for 0 (minus) signal lead, also with screen drain wire, PTFE insulation for maximum heat resistance and an Aluminum metal jacket that is front mounted and also an active part of chuck locking system to the female chassis RCA.

This is our top-of-the-line RCA contact available separately. One pair per package, i.e. one red and one white.

Mechanical specification

Quantity per package

One (red and white, in total two pcs)

pair

Contact type

RCA male

Conductor and contact material

24K Gold plated Copper

Insulation

PTFE

Jacket

Aluminum front mounted

Contact fixation

Chuck locking

Cable fixation

Solder

Strain relief

Chuck locking

Maximum cable diameter

< Ø7.7

mm

Dimensions (Ø x L)

13 x 43

mm
