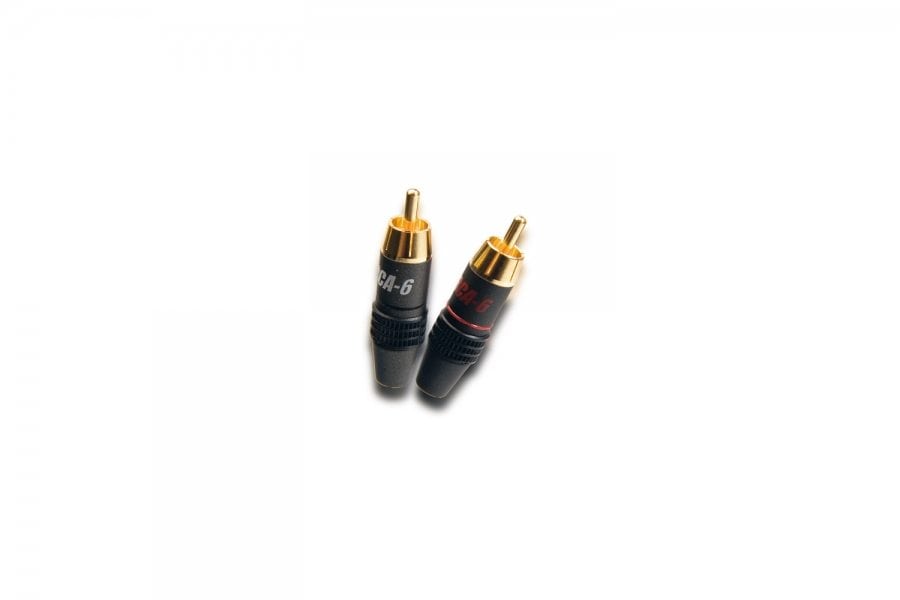

Supra RCA-6 PLUG RED/BLK
Kaina už 2 vnt.
Supra RCA-6
24K Gold plated RCA (Radio Corporation of America) contact for cable widths between 5 and 6 mm. Mechanical klamp strain relief. Expansion clamping force to the chassis female RCA. RFI proof thanks to the all metal shielding. Color markings for channel separation.
One (1) pair (red and white) per package.
Mechanical specification
Quantity per package
one (1) (red and white)
pair
Contact type
RCA male
Conductor and contact material
24K Gold plated Copper
Insulation
PTFE
Housing sleeve
Aluminum rear mounted1)
Contact fixation
Expanding outer ring
Cable fixation
Solder
Strain relief
Sheet metal clamp ring
Maximum cable diameter
5 – 6
mm
Dimensions (Ø x L)
12 x 50
mm
1) Remember to put the RCA contact housing sleeve on prior to mounting the contact body and soldering the leads.
