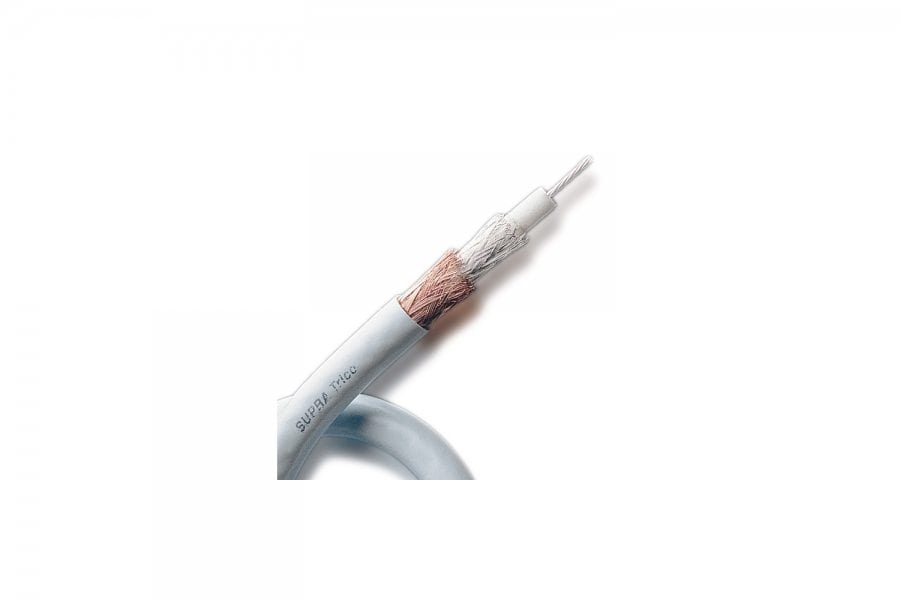

TRICO DIGITAL/VIDEO BLUE

Matuojamas kolonėlių kabelis.

20.00

Prekės prieinamumas: klausti

Share this product

Aprašymas

SUPRA RICO DIGITAL/VIDEO BLUE

Kaina už 1 metrą.

Supra Trico – Digital-/video-/antenna cable featuring real 75 Ohms impedance

Simply, our best digital cable with extraordinary bandwidth. Designed according to Supra signature feature of lowest possible capacitance, especially for transmission of binary code. The damping factor is only 0.6 dB per 100 meter cable length!  Thanks to its genuine 75 ohm impedance it is spot-on the specifications for the S/PDIF (Sony/Philips Digital Interface) standard. This is crucial for not adding jitter to the binary signal, which ruins the music signal quality. Impedance related jitter is one of the largest reasons why there is such a great variation of sound from digital cables and also why Supra Trico is so highly appreciated.

The di-electric (insulation) consist of a thick layer of PE foam (air-injected PE plastic foam) which provides for 58 pF/m capacitance, allowing the digital square wave to transmit the full signal without any deformation. The velocity factor is a staggering 0.78 x the light speed contributing to the binary square wave build-up with virtually no delay. These two properties combined provides for the binary code to arrive being easily interpreted, while some competitors distort the pulses making them much harder to distinguish as a distinct “1” or a “0”.

The center lead is silver plated oxygen-free copper and thanks to the silver’s superior conductivity, Trico protects the ultra high frequencies from high impedance damping. Also the signal return lead, in the form of a braid shield, is silver plated. An additional outer shield of oxygen-free copper is topping Trico’s high noise rejection and contributing to its top signal integrity.

Suitable usage areas; e.g. composite video, RGB-video (separate video channels), S/PDIF and as an antenna cable suitable for long cable runs such as distribution of central TV in apartment houses.

Features and benefits

Silver plated, OFC, 5N copper leads – exceptional high frequency conductivity

True 75 ohm – Matches the numerous 75 ohm transmissions standards without losses

PE foam insulation, extremely low capacitance – Virtually instant transient response

Exceptionally low damping factor – allows for long cable runs

Double shielded – Immune to surrounding noise fields that will harm signal quality

Our best hi-fi digital cable

Rock solid properties up to signal frequencies of 100 MHz – maintained timing and amplitude

Made in Sweden!

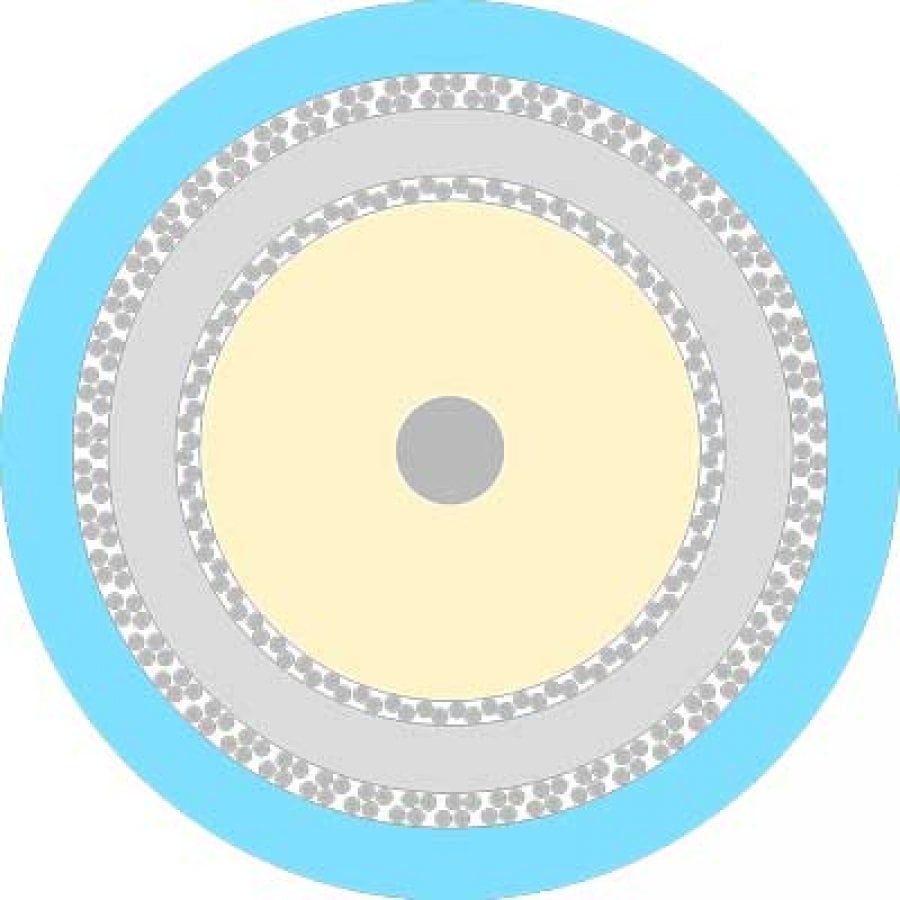

Mechanical data

Number of leads

3 (+, – and earth)

pieces

Lead area

0.71 / 19

mm2 / AWG

Number of strands per lead

7

pieces

Strand diameter

0.36

mm

Lead material

Silver plated, oxygen-free, 5N copper

Di-electric (insulation)

Air-injected PE foam

Shield

Return lead + additional outer shield; 90

% coverage

Jacket

Heat and age resistant PVC

Outer dimension

8.2

mm

Weight (without connectors)

105

g/m

Length

100

m/bobbin

Electrical properties

Resistance

Ω / km

Capacitance

58

pF / m

Dampening factor @ 1 MHz

0.6

dB / 100 meter

Dampening factor @ 100 MHz

7.1

dB / 100 meter

Characteristic impedance

75

Ω (±1,5 Ω @ 1 MHz-100 MHz)

Velocity factor

0.78

x C (speed of light)
