AUDIO FROM SPACE-SAVING SOUND COMPONENTS.
High Quality sound from a compact, perfectly build system. Enjoy CDs, MP3 / WMA files via USB or iPod/iPhone like never before.
These micro components feature the best sound technology available. The CD player uses an EI transformer to guarantee silent operation and can transcode music up to 192kHz 32bit, the highest resolution currently available. The Class D amplifier provides highly efficient power delivery and sound performance, whatever your musical preference. A pair of beautifully finished piano-black 75 Watt, 2-way bass-reflex speakers using a 12mm high strength glass fibre cone and 25mm tweeter complete the system.
This audio system is also available in black, or, if you prefer, without speakers (model reference: P01).
DIRECT ENERGY AMP
These stereo components are equipped with high performance Class D technology inherited from our flagship AV receivers and amplifiers.
QUALITY YOU CAN FEEL
Enjoy digital radio without interference thanks to the built-in DAB/DAB+ tuner, or simply tune into the FM radio with RDS.
AUDIO GRADE
Featuring high strength glass fibre woofers and a specially tuned network circuit, the beautifully finished gloss black speakers complement the system perfectly.
CD LIKE NEVER BEFORE
Equipped with a 192 kHz/32-bit DA converter, the player reproduces musical nuances with masterful sound quality.
LISTENING PLEASURE
Direct Mode: Bypass all other sound processing and hear your music in its purist form, as it was intended.
MP3, WMA, IPOD, IPHONE
The USB input supports your iPod and iPhone as well as providing playback of multiple formats.
Specifikacija:
Audio savybės:
Stereo grotuvas:
IR Class D Amplifier
Rated Power Output 75 W + 75 W (0.7 % THD, 1 kHz, 4 ohms 2ch drive)
Rated Distortion: Less than 0.03 % (Rated output -3 dB)
Frequency Response: 10-30 kHz + 0.5/-3 dB (Analogue Input), 87.5-108 MHz (FM), 174.928-239.2 MHz (DAB BAND III, DAB+)
Tone Control: Bass ±10 dB (70 Hz), Treble ±10 dB (10 kHz)
EI-Core Transformers
Source Direct
Treble/Bass
FM (RDS) Tuner (40 Presets)
CD grotuvas:
S/N Ratio: 110 dB
Total Harmonic Distortion: 0.003 %
Dynamic Range: 100 dB
Frequency Response: 4 Hz-20 kHz
192 kHz/32-bit DA Converter
EI-Core Transformers
Made for iPod/iPhone
iPod Digital Transmission
CD-DA, CD-R/CD-RW Playback (MP3/WMA)
USB Playback (WAV/MP3/WMA)
Kolonėlės:
Frequency Response: 40 Hz-40 kHz
Impedance: 4 ohms
Maximum Power Input: 75 W
12 cm Glass-Fibre Cone Woofer
2-Way Bass-Reflex
2.5 cm Soft Dome Tweeter
Machined Gold-Plated Speaker Terminals

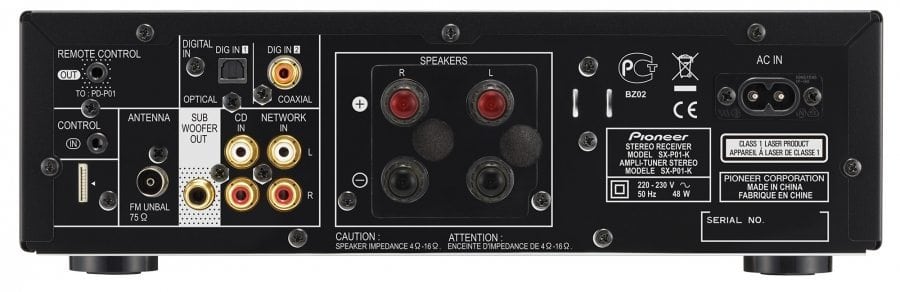

Įvestys/išvestys:
Stereo grotuvas:
Speaker Terminal (Screw Type, Gold-Plated)
Analogue Audio Input (NETWORK/CD, Gold-Plated)
Digital Coaxial Input (Gold-Plated)
Digital Optical Input
SR In
Preout (SW)
Phones Output (Gold-Plated)
FM/DAB Tuner Antenna
AC Inlet
CD grotuvas:
USB/iPod/iPhone (Front)
Analogue Output
Digital Coaxial Output (Gold-Plated)
Audio Output (RCA, Gold-Plated)
AC Inlet
Papildomos savybės:
Stereo grotuvas:
Aluminium Front Panel, Volume Knob, Source Knob
Slim Depth
Sleep/Wake-up Timer
Dimmer (4 Steps)
CD grotuvas:
Aluminium Front Panel
Slim Depth
Dimmer (4 Steps)
Išmatavimai ir svoris:
Stereo grotuvas:
Dimensions (W x H x D): 285 x 88 x 287 mm
Weight: 4.1 kg
CD grotuvas:
Dimensions (W x H x D): 285 x 88 x 257.5 mm
Weight: 3.1 kg
Kolonėlės:
Dimensions (W x H x D): 156 x 266 x 258 mm
Weight: 4.3 kg (each)
