Aprašymas
YAMAHA YHT-2930 – Home Theatre Package. Bluetooth Compatible
5-channel powerful surround sound
140 per Channel (6 ohms, 1 kHz, 10% THD, 1ch driven)
Bluetooth® for wireless music streaming
Compressed Music Enhancer for Bluetooth
YPAO™ sound optimisation for automatic speaker setup
NS-P20
5.1-channel home theater speakers featuring a stylish, curvy design. The Advanced YST subwoofer outputs strong and clear bass
Stylish, curvy design looks fresh in any interior
Glossy black cabinets match the latest TV designs
SPECIFICATIONS:

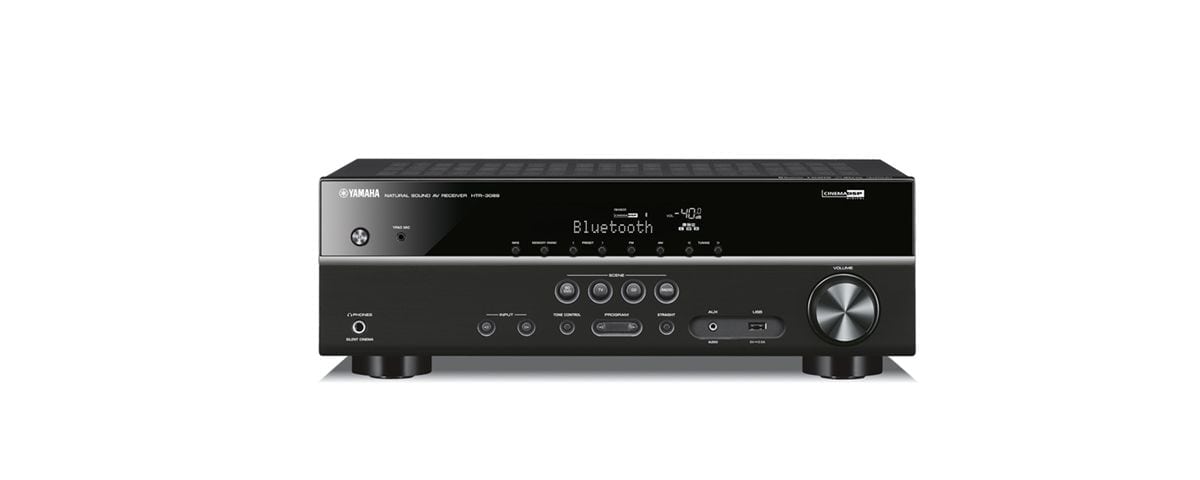

AV Receiver:
Amplifier Section:
Channel: 5.1
Rated Output Power (1kHz, 1ch driven): 100 W (6 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven): 70 W (6 ohms, 0.09% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA): 140 (6 ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms): – / 110 / 130 / 150 W
Surround Sound Processing:
CINEMA DSP
DSP Programs: 17
Dialog Level Adjustment
SILENT CINEMA / Virtual CINEMA DSP (Virtual CINEMA FRONT)
Dolby TrueHD
Dolby Digital Plus
DTS-HD Master Audio
Audio Features:
Compressed Music Enhancer (incl. enhancer for Bluetooth)
YPAO sound optimization
Adaptive DRC (Dynamic Range Control)
Initial Volume & Maximum Volume Setting
Audio Delay (0-500 ms)
192kHz/24-bit DACs for all channels (Burr-Brown)
Video Features:
4K Ultra HD Pass-through (4K 60p 4:4:4)
HDMI 3D passthrough
HDMI Audio Return Channel
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync
Connectivity:
HDMI Input/Output: 4 / 1 (HDCP2.2, HDR and BT.2020 compatible)
HDMI CEC
USB Input: USB Memory, Portable Audio Player
Bluetooth (SBC)
Front AV Input: USB / Mini Jack
Digital Audio Input/Output: Optical: 1 / 0
Digital Audio Input/Output: Coaxial: 2 / 0
Analog Audio Input/Output: 3 (front 1) / 0
Composite Video Input/Output: 3 / 1
Preout: SW
Headphone Output: 1
Tuner Section:
FM/AM Tuner
User Interface:
On-screen display (colour OSD)
SCENE: SCENE (4 sets)
Remote Control Unit
General:
Standby Power Consumption (IR only): ≤0.3W
Auto Power Standby
ECO mode
Dimensions (W x H x D): 435 x 151 x 315 mm
Weight: 7.4 kg

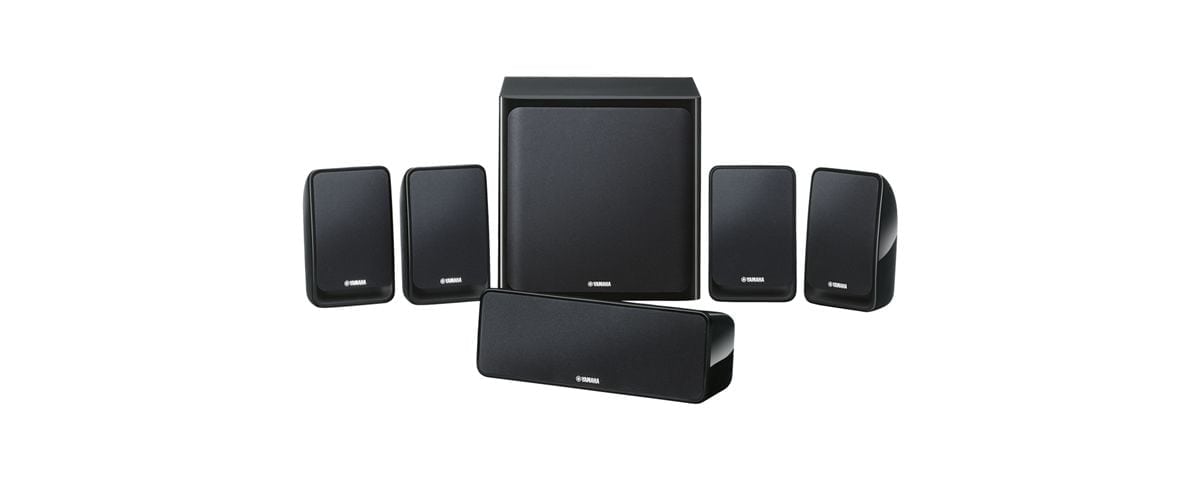

Package Speaker:
Channel: 5.1
Speaker System:
System Frequency Response: 30 Hz–25 kHz
Impedance: 6 ohms (without subwoofer)
Front Speaker:
Type: Full-range acoustic suspension
Driver: 7cm (2-3/4”) full-range cone
Nominal Input Power: 30 W
Maximum Input Power: 100 W
Sensitivity: 83 dB/2.83 V/1 m
Dimensions (W x H x D): 115 x 176 x 88 mm
Weight: 0.48 kg / unit
Center Speaker:
Type: Full-range acoustic suspension
Driver: 7cm (2-3/4”) full-range cone
Nominal Input Power: 30 W
Maximum Input Power: 100 W
Sensitivity: 84 dB/2.83 V/1 m
Dimensions (W x H x D): 291 x 101 x 103 mm
Weight: 0.68 kg
Surround Speaker:
Type: Full-range acoustic suspension
Driver: 7cm (2-3/4”) full-range cone
Nominal Input Power: 30 W
Maximum Input Power: 100 W
Sensitivity: 83 dB/2.83 V/1 m
Dimensions (W x H x D): 115 x 176 x 88 mm
Weight: 0.48 kg / unit
Subwoofer:
Type: Advanced YST with Linear Port
Driver: 16cm (6-1/2”) cone
Output Power: 50 W (5 ohms, 100 Hz, 10% THD)
Dynamic Power: 100 W
Dimensions (W x H x D): 262 x 264 x 299 mm
Weight: 7 kg
HD Audio with CINEMA DSP 3D and Virtual Presence Speaker
CINEMA DSP 3D provides a wide, high and dense sound field. HD Audio format decoding lets you enjoy HD Audio sources. Virtual Presence Speaker delivers 3-dimensional sound without actual use of presence speakers.
Bluetooth®-Compatible for Wireless Music Streaming
This AV receiver is equipped with Bluetooth functionality to let you enjoy easy wireless music playback from smartphones and other devices. Yamaha Compressed Music Enhancer is now optimised for Bluetooth audio transmission to ensure that your music will have vivid, lively sound quality even during wireless playback.
ECO mode Lowers Power Consumption by 20%*
Yamaha’s new ECO mode reduces power consumption by about 20%. It can be set from the top of the GUI menu.
*Compared to power consumption when ECO mode is off (Yamaha measurement).
Extra Bass Provides Rich Bass Reproduction, Even with Small Speakers
Yamaha’ s exclusive low-range enhancement technology delivers richer bass than you expect from the speaker size while maintaining good localisation and sound balance even with compact front speakers. When a subwoofer is used, it improves the volume of the entire low range of the speaker system, not only the front speakers, but also enhancing the bass from the subwoofer. You’ll enjoy video and music with sound that has exceptional power and presence.
SCENE for One-Touch Start
Pressing a SCENE button powers on the AV Receiver and selects the input source and DSP mode. You can re-set the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.
4K Ultra HD Full Support with 4K60p, HDCP2.2, HDR Video and BT.2020 pass-through
This AV receiver completely supports with the latest HDMI® standards. Thanks to transmission of 4K video at 60 frames per second pass-through, you can fully enjoy the high definition video quality of 4K without degradation. It also adheres to the HDCP2.2 copyright protection standard for 4K video transmission. It also supports HDR (High Dynamic Range) Video which provide enhanced picture quality by simultaneously enabling greater detail for both the dark and bright parts of an image. Furthermore it supports wider colour gamut of BT.2020 pass-through.
5.1-Channel Home theater Package
These suitably sized speakers deliver a fullbodied, well-balanced sound. Affordable yet high quality, the NS-P20 is an excellent choice for setting up a home theater.
Advanced YST for Awesome Deep Bass
Yamaha’s exclusive Advanced Active Servo Technology (Advanced YST) generates incredible bass from small speaker enclosures. Advanced YST is the ideal method of combining amplifiers and speakers for maximum performance. This system’s advanced negative impedance converter intelligently adjust the negative impedance generation as the speaker moves, creating a hard, rigid cone that prevents deep resonant waves from leaking out of the speaker cone. This means the full power of the waves is forced out through the air port, resulting in clear, powerful bass.
Curvy Design for Chic Interiors
The surround speakers have a curved shape that blends nicely with any interior. They are just the right size for good sound quality and convenient placement in almost any location.
Glossy Black Cabinets
The glossy black speaker cabinets are designed to complement the appearance of most of the latest flat-screen TVs.
HD Audio Compatible, for Great Movie Sound
Compatible with HD audio sources, the NS-P20 delivers superb music and movie sound. The speakers are tuned to deliver a clear, soft sound that is pleasant to listen to for long periods.
Linear Port
The Linear Port helps to ensure smooth bass response, while minimizing extraneous noise.
