Aprašymas
YHT-4930 Home Theatre Package.
Choose your smart Home Theatre package with MusicCast support.

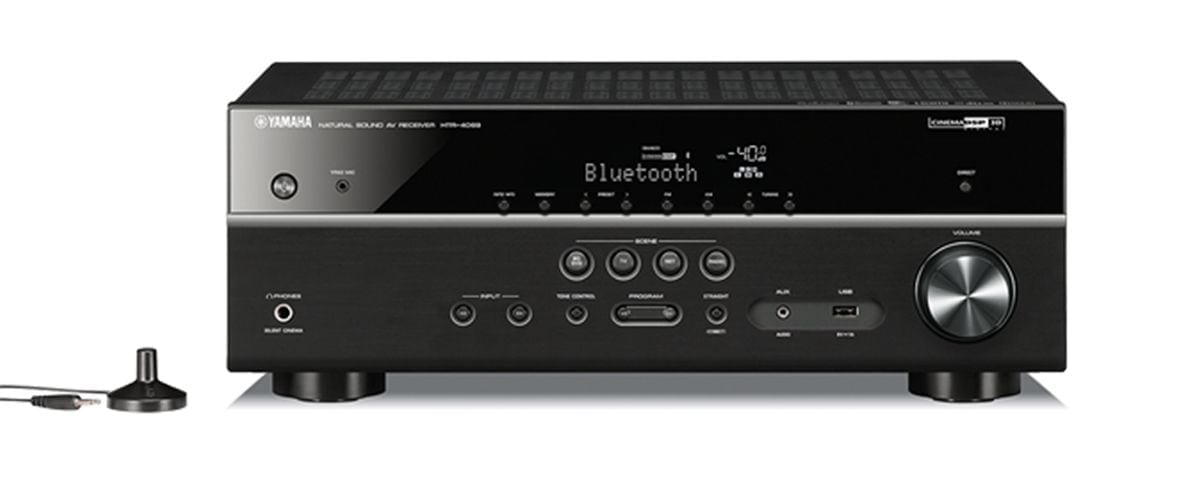

HTR-4069 Compatible with Yamaha’s MusicCast, enjoying music through the home becomes a reality.
5-channel powerful surround sound with 145 W per channel (6 ohms, 1 kHz, 10% THD, 1ch driven)
Wi-Fi Built-in and Wireless Direct Compatible for Easy Network
Bluetooth® for wireless music streaming and Compressed Music Enhancer for Bluetooth
HDMI® (4 in / 1 out) 4K Ultra HD Full Support with 4K60p (4:4:4), HDCP2.2 (4 in / 1 out), HDR Video and BT.2020 pass-through

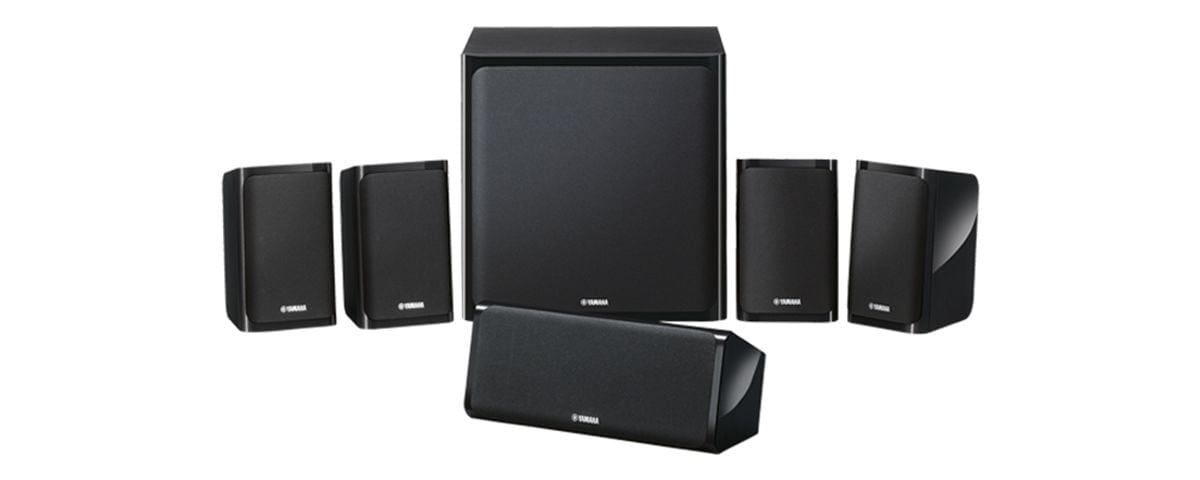

NS-P40
5.1-channel home theater speaker package for enjoying full surround sound with music and movies. The Advanced YST II subwoofer outputs strong and clear bass.
Subwoofer delivers surprisingly dynamic bass thanks to its Advanced YST II design
Glossy black cabinets match the latest TV designs
Specifikacija:
AV Receiver:
Amplifier Section:
Channel: 5.1
Rated Output Power (1kHz, 1ch driven): 115 W (6 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven): 80 W (6 ohms, 0.09% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA): 145 W (6 ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms): – / 110 / 130 / 160 W
Surround Sound Processing:
CINEMA DSP (3D)
DSP Programs: 17
Dialog Level Adjustment
Virtual Presence Speaker
Dialogue Lift
SILENT CINEMA / Virtual CINEMA DSP (Virtual CINEMA FRONT)
Dolby TrueHD
Dolby Digital Plus
DTS-HD Master Audio
Audio Features:
Compressed Music Enhancer (incl. enhancer for Bluetooth)
YPAO sound optimization
Adaptive DRC (Dynamic Range Control)
Initial Volume & Maximum Volume Setting
Bi-amp capability
Audio Delay (0-500 ms)
192kHz/24-bit DACs for all channels (Burr-Brown)
Video Features:
4K Ultra HD Pass-through (4K 60p 4:4:4)
HDMI 3D passthrough
HDMI Audio Return Channel
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync
Connectivity:
HDMI Input/Output: 4 / 1 (HDCP2.2, HDR and BT.2020 compatible)
HDMI CEC
USB Input: USB Memory, Portable Audio Player
Network Port
Wi-Fi (with Wireless Direct)
AirPlay
Bluetooth (SBC / AAC)
Front AV Input: USB / Mini Jack
Digital Audio Input/Output: Optical: 1 / 0
Digital Audio Input/Output: Coaxial: 2 / 0
Analog Audio Input/Output: 4 (front 1) / 0
Composite Video Input/Output: 4 / 1
Preout: Subwoofer
Headphone Output: 1
Tuner Section:
FM/AM Tuner
User Interface:
On-screen display (colour OSD)
SCENE: SCENE (4 sets)
App Control (iPhone / iPad / Android phone / tablet)
Remote Control Unit
Zone Control:
Zone B Output
General:
Standby Power Consumption (IR only): ≤0.1W
Auto Power Standby
ECO mode
Dimensions (W x H x D): 435 x 161 x 327 mm (with antenna: 435 x 225.5 x 327 mm)
Weight: 8.1 kg
Package Speaker:
Channel: 5.1
Speaker System:
System Frequency Response: 30 Hz–25 kHz
Impedance: 6 ohms (without subwoofer)
Front Speaker:
Type: Full-range bass-reflex
Driver: 7 cm (2-3/4”) full-range cone
Nominal Input Power: 30 W
Maximum Input Power: 100 W
Sensitivity: 83 dB/2.83 V/1 m
Dimensions (W x H x D): 112 x 176 x 116 mm
Weight: 0.59 kg / unit
Center Speaker:
Type: Full-range acoustic suspension
Driver: 7cm (2-3/4”) full-range cone
Nominal Input Power: 30 W
Maximum Input Power: 100 W
Sensitivity: 84 dB/2.83 V/1 m
Dimensions (W x H x D): 276 x 111 x 118 mm
Weight: 0.73 kg
Surround Speaker:
Type: Full-range bass-reflex
Driver: 7 cm (2-3/4”) full-range cone
Nominal Input Power: 30 W
Maximum Input Power: 100 W
Sensitivity: 83 dB/2.83 V/1 m
Dimensions (W x H x D): 112 x 176 x 116 mm
Weight: 0.59 kg / unit
Subwoofer:
Type: Advanced YST II with Linear Port
Driver: 16cm (6-1/2”) cone
Output Power: 50 W (5 ohms, 100 Hz, 10% THD)
Dynamic Power: 100 W
Dimensions (W x H x D): 290 x 292 x 327 mm
Weight: 8 kg
MusicCast
MusicCast is a new revolution in network audio, use all your MusicCast products together or separately, it’s completely up to you. Control it, all from one app, designed to be intuitive, quick and simple to use. Use a soundbar, a wireless speaker, an AV Receiver, Hi-Fi audio whichever suits you best, mix and match then expand your MusicCast system as time goes on. All new from Yamaha, the MusicCast system brings everything to everywhere for everyone.
MusicCast Expands Entertainment Possibilities
MusicCast employs a high performance wireless network to deliver music and audio enjoyment. It can stream digital music content from your smartphone, PC or NAS to other MusicCast devices in your home. It can also share the music from external devices such as a TV or Blu-ray Disc™ player connected to the RX-V481. Audio content from Bluetooth®-connected smartphones or tablets can also be streamed to MusicCast devices in multiple rooms.
AirPlay Allows Streaming Music to AV receiver
This AV receiver supports AirPlay, which means they can accept wireless music streaming from iPod touch®, iPhone® or iPad®, as well as from iTunes on Macs or PCs. This makes it easy to enjoy music from your mobile devices or computer on your home theatre system. You can use view metadata such as song title, artist name as well as album art* via AV receiver’s on-screen display.
*Some models don’t support album art display.
HD Audio with CINEMA DSP 3D and Virtual Presence Speaker
CINEMA DSP 3D provides a wide, high and dense sound field. HD Audio format decoding lets you enjoy HD Audio sources. Virtual Presence Speaker delivers 3-dimensional sound without actual use of presence speakers.
4K Ultra HD Full Support with 4K60p, HDCP2.2, HDR Video and BT.2020 pass-through
This AV receiver completely supports with the latest HDMI® standards. Thanks to transmission of 4K video at 60 frames per second pass-through, you can fully enjoy the high definition video quality of 4K without degradation. It also adheres to the HDCP2.2 copyright protection standard for 4K video transmission. It also supports HDR (High Dynamic Range) Video which provide enhanced picture quality by simultaneously enabling greater detail for both the dark and bright parts of an image. Furthermore it supports wider colour gamut of BT.2020 pass-through.
AV Controller App for Easy, Convenient Operation
This AV receiver lets you use the Yamaha AV Controller app that is downloadable from the iTunes App Store or Google Play to control power on / off and volume, select input and DSP modes and operate other functions from an iPhone or Android devices. You can also use in as many as 23* different languages and customise the interface by hiding unused icons and renaming functions. A tablet version is also available.
*As of spring 2014
Bluetooth Output for Convenient Music Streaming
The RX-V481 is equipped with the latest Bluetooth technology, making wireless operation more convenient than ever. You can stream music from the RX-V481 to Bluetooth headphones for private listening or to Bluetooth speakers.
Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha’s Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.
Discrete Amp Configuration for High Sound Quality
This AV receiver was designed with a strong focus on achieving exceptionally high sound clarity. It employs a discrete amp configuration and a low jitter PLL circuit, which contribute to its excellent audio performance.
5.1-Channel Home theater Package
These suitably sized speakers deliver a full-bodied, well-balanced sound. Affordable yet high quality, the NS-P40 is an excellent choice for setting up a home theater.
Advanced YST II for Awesome Deep Bass
Yamaha’s newly developed Advanced YST II (Yamaha Active Servo Technology II) combines negative-impedance and constant-current principles to drive the speaker cone with even tighter control than previously. Using Advanced Negative Impedance Converter (ANIC) circuits, this system dynamically optimizes effective speaker impedance to maintain excellent linearity. This means more stable and accurate low range response, not to mention higher sound pressure levels, for more natural and energetic bass reproduction.
Glossy Black Cabinets
The glossy black speaker cabinets are designed to complement the appearance of most of the latest flat-screen TVs.
Linear Port
The Linear Port helps to ensure smooth bass response, while minimizing extraneous noise.
Wall mountable (front, center and surround)
Keyhole openings in the back allow these speakers to be neatly mounted on a wall.
