DOLBY ATMOS CINEMA IN THE HOME
The Cinema 800 Dolby Atmos Sound Bar, with 800 watts of power, brings decades
of professional cinema acoustic research and development to your home, meaning
all your movies and TV shows will have the same power, dynamics, and detail as the
movie theater. Dolby Atmos technology creates overhead sound to deliver cinematic
surround sound with greater realism.
EASY PLUG AND PLAY SET UP
The Cinema 800 is designed to quickly connect to your TV. Simply plug in the included
HDMI cable or an optical cable to seriously upgrade your TV sound, using your TV’s
remote to control it. The included 10” wireless subwoofer is pre-paired to connect
automatically out of the box, for a hassle free set up in just minutes. Next generation
HDMI eARC connectivity means true Dolby Atmos sound and ultra-high definition
video with a single HDMI cable.
WIRELESS MULTI-ROOM STREAMING
Built-in universal Wi-Fi works with Google Assistant, Amazon Alexa, and Spotify
Connect, allowing you to add the Cinema 800 Dolby Atmos Sound Bar to your existing
smart home ecosystem and play your favorite streaming music service anywhere in
BEST-IN-CLASS 10-INCH WIRELESS SUBWOOFER
The Cinema 800 comes with a powerful wireless 10” subwoofer that you can place
anywhere in your room, for true Klipsch cinema sound. Wireless 2.4 GHz technology
automatically connects the sound bar and the subwoofer together, while a wired
subwoofer output allows you to add a second subwoofer to your setup or simply
replace the included wireless subwoofer with the subwoofer of your choice.
Features HDCP 2.3, for 8K HDR video pass-through for use with state-of-the-art TVs
and HDMI sources.
7.1.4 DOLBY ATMOS DECODING
With Dolby Atmos processing in the sound bar, The Cinema 800 Dolby Atmos
creates overhead sound to deliver cinematic surround sound with greater
realism, detail, and immersion.
DIALOG ENHANCEMENT MODES
All new custom tuned dialog modes not only raise the volume of the dialog in your
TV shows and movies, but also optimize the EQ setting of the system, to ensure the
dialogue is crisp, clear, and exceptionally intelligible no matter what’s happening on
screen. Three levels of dialogue enhancement ensure that you can find the perfect
setting for your needs.
BLUETOOTH® WIRELESS TECHNOLOGY READY
Works great with all Bluetooth-enabled smartphones, tablets and computers – allowing
you to play music direct from your device, while the latest Bluetooth 5.0 chip means
better connectivity, better range, and better battery life on your connected devices.
The Cinema 800 is a true 3.1 system, featuring a dedicated center channel speaker
for enhanced vocal clarity, and horn-loaded tweeters, just like our legendary
professional cinema speakers, for dynamic power in every detail of your music
and movies. The Cinema 800 is crafted from high-quality wood materials, just like
legendary Klipsch speakers.

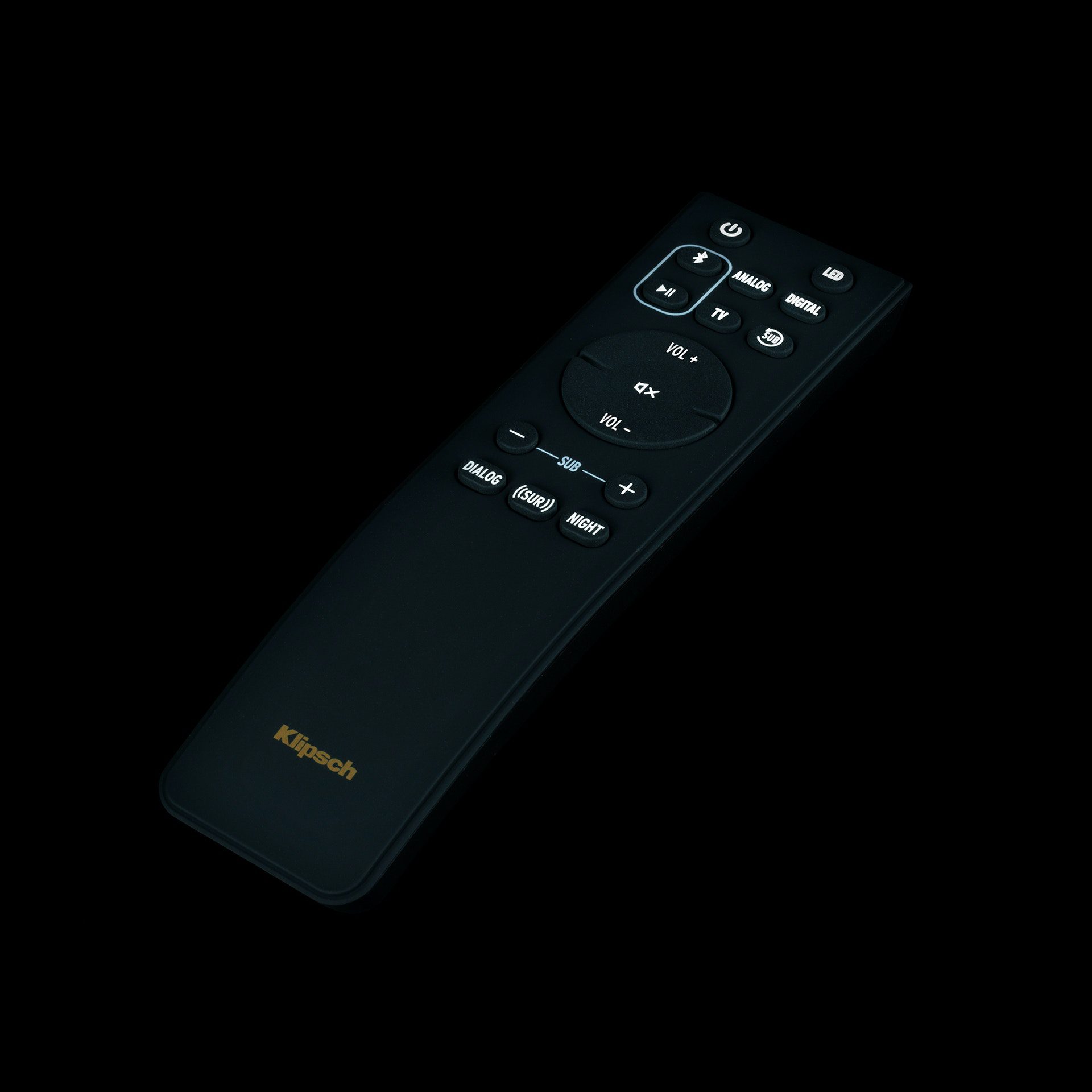

MOTION SENSING REMOTE
The included premium remote features motion-sensing LED buttons so you’re in full
control, even when the lights are low. In addition to volume and input selection, the
remote lets you adjust subwoofer level, surround level, and sound mode with the push
of a button to dial in the perfect listening experience right from your seat.
DOLBY AUDIO® BUILT IN
The built-in Dolby Digital and Dolby Digital Plus processing enables powerful cinema
experiences with discrete processing for dialog and (optional) surround channels.
Add the optional SURROUND 3 speakers to turn this 3.1 sound bar into a full-fledged 5.1
surround sound system. (SURROUND 3 sold separately)

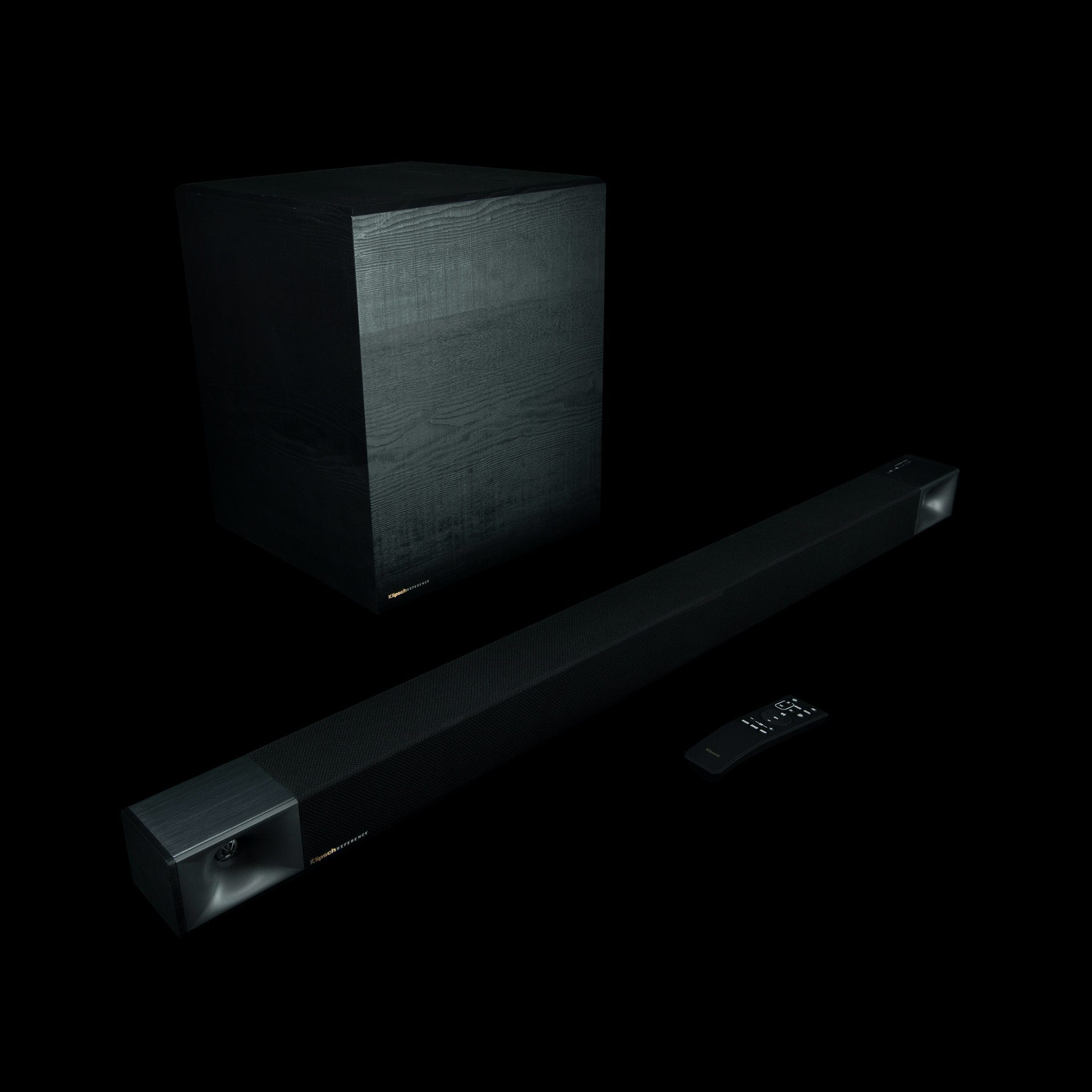

SPEAKER SYSTEM 48″ 3.1 Dolby Atmos soundbar with 10″ wireless subwoofer
MAX ACOUSTIC OUTPUT 107dB
HIGH FREQUENCY DRIVERS (3) 1″ (25.4mm) soft dome tweeters mated to Tractrix® horns
MIDRANGE (4) 3″ (76.2mm) high output oval fiber composite cone woofers
SUBWOOFER 10″ (254mm) wireless ported subwoofer
ENCLOSURE TYPE Bar: Wood • Subwoofer: Wood
SYSTEM POWER 800W
FREQUENCY RESPONSE 28-20kHz
INPUTS HDMI-eARC • (2) HDMI • Bluetooth® • 3.5mm Analog • Optical Digital
OUTPUTS Subwoofer (RCA) Output
DIMENSIONS (BAR) 48” (121.9cm) W x 2 7/8” (7.3cm) H x 3 3/8 (8.6cm) D
DIMENSIONS (SUBWOOFER) 14 1/4″ (36.8) W x 18 1/2″ (47.1cm) H x 14 1/2 (36.8cm) D
FINISH Black (interchangeable walnut end caps included)
VOLTAGE 100-240V 50/60Hz internal power supply
WEIGHT 22 lbs (9.98 kg)
INCLUDED ACCESSORIES LED Backlit Remote control
(2) 1.5m power cord (Region specific)
(2) Keyhole mounting clip(With 1/4 – 20 Screw) Wall mount template
(2) AA batteries
(1) 1.5m HDMI Cable
MOUNTING OPTIONS 1/4-20 Keyhole Mount
Included slim-depth wall brackets
