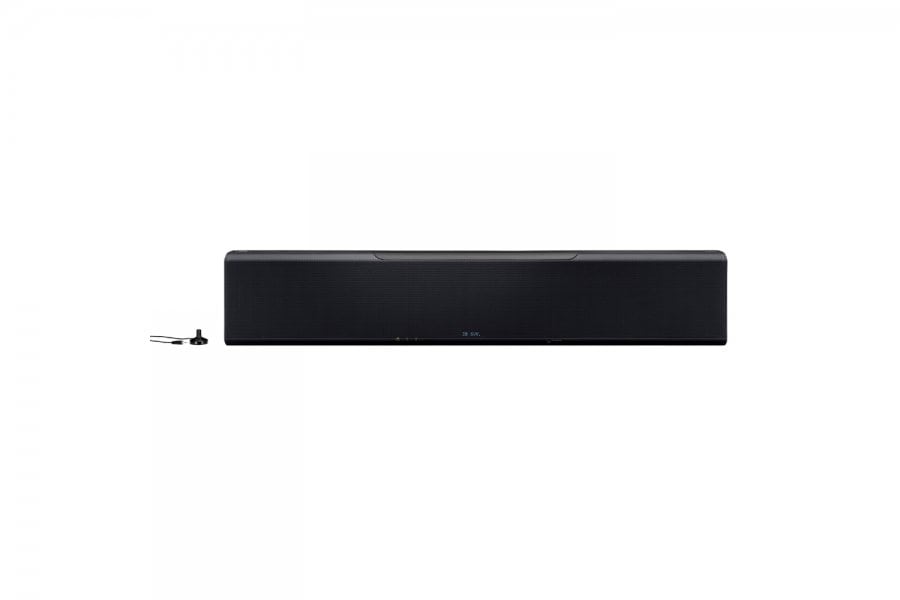

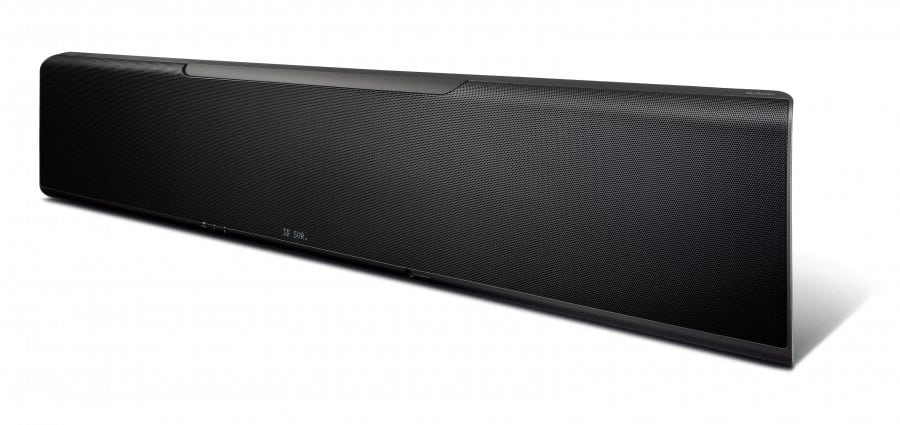

Never go to the movie theater again. With Dolby Atmos® and 46 speakers that project sound around your room, the YSP-5600 makes home the best theater. MusicCast streaming enabled.
World′s first sound bar with 7.1.2-channel multidimensional sound
HDMI® inputs with 4K Ultra HD pass-through and HDCP 2.3
Versatile connectivity – Wi-Fi, Bluetooth, AirPlay and Spotify Connect
MusicCast provides access to Pandora®, Napster, TIDAL, Deezer, Spotify, SiriusXM Internet Radio and more
Add audio in up to 9 additional rooms with MusicCast
Voice control with Alexa and Google Assistant devices

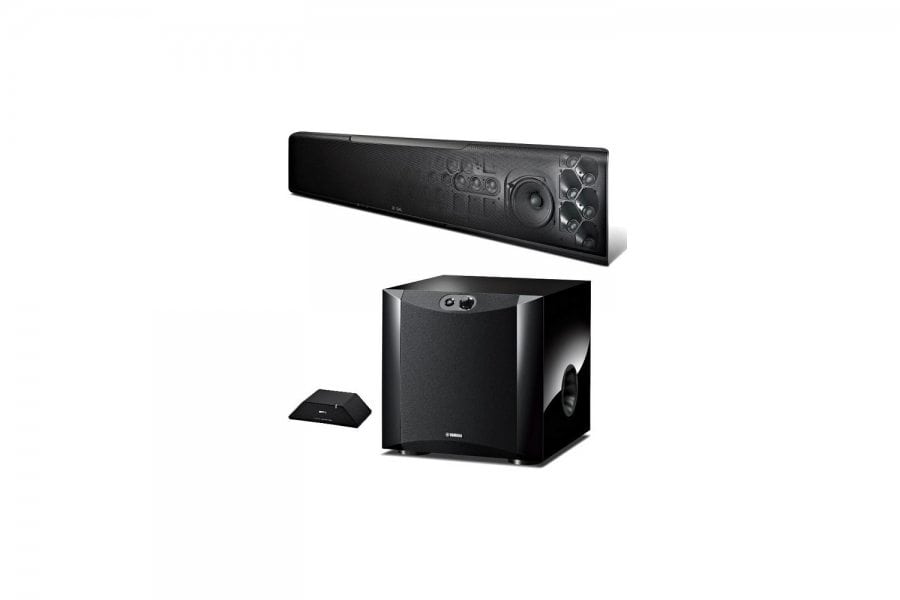

Subwoofer and wireless transmission kit sold separately – see accessories for details
TECHNICAL DATA
GeneralOutput ChannelOutput PowerStandby Power ConsumptionBeam DriversWoofersDimensions (W x H x D)WeightInput / OutputHDMIDigital OpticalDigital CoaxialAnalog AudioSubwoofer outputHDMI4K Pass-throughx.v.Color3D Pass-throughARCCECAuto Lip-SyncSound TechnologySurround TechnologyCINEMA DSP MovieCINEMA DSP MusicCINEMA DSP EntertainmentListening ModeCompressed Music EnhancerAudio FormatsDolby AtmosDolby TrueHDDolby Digital PlusDolby DigitalDolby Digital EXDTS:XDTS-HD Master AudioDTS-HD High ResolutionDTS Digital SurroundDTS-ESDTS 96/24LPCMConnectivityWireless Music StreamingWi-FiAirPlayBluetooth Version/ProfileEthernetOther FeaturesIntelliBeamOn-Screen DisplayOn-Screen Display LanguagesECO ModeApp ControlAccessories (Optional)Wall Mounting Bracket
YSP-5600
YSP-5600
Sound Bar
General Output Channel 7.1.2-channel
Output Power 128W total power: 88W array speakers + 40W woofers
Standby Power Consumption 0.3 W (HDMI control OFF, Network Standby OFF), 2.0 W (HDMI Control OFF, Network Standby ON, Wi-Fi ON)
Beam Drivers Vertical sound beam speaker array: 1-1/8″ x 6 beam drivers x 2 (L / R) Horizontal sound beam speaker array: 1-1/2″ x 32 beam drivers
Woofers 4-1/2” x 2 woofers
Dimensions (W x H x D) [without stands] 43-1/4” x 8-3/8” x 3-5/8” [with included stands] 43-1/4” x 8-1/2” x 4-3/4”
Weight 25.8 lbs.

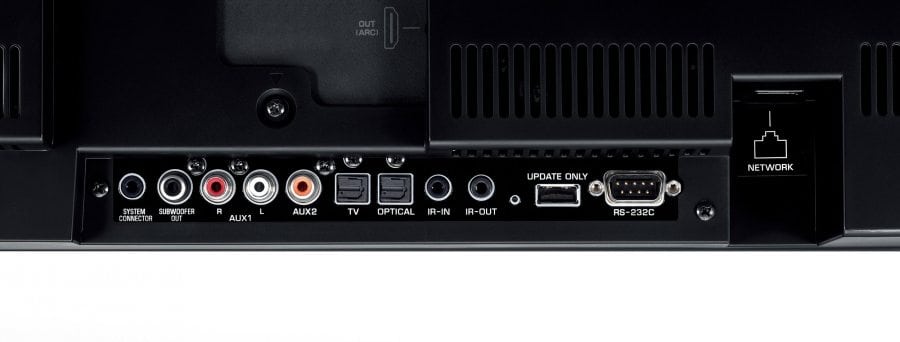

Input / Output HDMI 4 in (Input1: HDCP 2.3) / 1 out (HDCP 2.3, ARC)
Digital Optical 2 in
Digital Coaxial 1 in
Analog Audio 1 in
Subwoofer output Yes
HDMI 4K Pass-through Yes (60p)
x.v.Color Yes
3D Pass-through Yes
ARC Yes
CEC Yes
Auto Lip-Sync Yes
Sound Technology Surround Technology Digital Sound Projector
CINEMA DSP Movie 3 (Sci-Fi, Adventure, Spectacle)
CINEMA DSP Music 3 (Music Video, Concert, Jazz Club)
CINEMA DSP Entertainment 4 (Sports, Talk Show, Drama, Game)
Listening Mode 3D Surround, Surround, Stereo, Target Playback Mode, My Surround
Compressed Music Enhancer Yes
Audio Formats Dolby Atmos Yes
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Digital Yes
Dolby Digital EX Yes
DTS:X Yes
DTS-HD Master Audio Yes
DTS-HD High Resolution Yes
DTS Digital Surround Yes
DTS-ES Yes
DTS 96/24 Yes
LPCM Yes
Connectivity Wireless Music Streaming Yes (with Bluetooth, Wi-Fi)
Wi-Fi Yes (IEEE802.11b/g/n, Radio Frequency Band 2.4GHz)
AirPlay Yes
Bluetooth Version/Profile (Version) Ver. 2.1 + EDR (Codec) Receiving: SBC, MPEG4-AAC / Transmitting: SBC
Ethernet Yes (100base-T, 10base-T)
Other Features IntelliBeam Yes
On-Screen Display Yes
On-Screen Display Languages English, German, French, Spanish, Italian, Dutch, Russian, Swedish, Turkish, Japanese
ECO Mode Yes
App Control Yes
Accessories (Optional) Wall Mounting Bracket SPM-K30
